| Fire Survival Cables Voltage Rating | As per BS:60702 500 Volts light Duty, 750 Volts Heavy Duty |
| Description | Mineral Insulated cable delivers ultimate fire performance. It guarantees data transmission and security of power and control circuits by exceeding the requirements of BS:8519-1 providing circuit integrity to 950°C. It also exceeds enhanced grade requirements defined by BS:5839-2-26.2e- the only universal cable that satisfy all Cat. 1,2 & 3 Power, and all Cat 1,2 & 3 Control requirements defined by BS:8519. |
| Construction | Solid copper conductor. Compressed magnesium oxide powder insulation. Solid copper sheath and optional thermoplastic LSZH sheath. |
| Operationg Temperature | -10°C to + 250°C |
| Minimum Bending Radius | 6 X Overall Diameter |
| Core identification | Coloured sleeving available |
| Lengths | LD 100/500 mtrs. Special lengths available on
request. HD - Cables aviailable in nominal lengths. |
| Sheath Colour | Red, White or Orange. Other colours available |
| Manufacturing Standard | BSEN 60702-1 and BS EN 60702-2 Accessories (BS EN 60079) |
| Code of Practice | BS 5839-1 Clause 26.2e Enhanced BS 5266-- BS 5839 Category 1 & 2 Control For Category 3 and Power Applications see special Notes. |

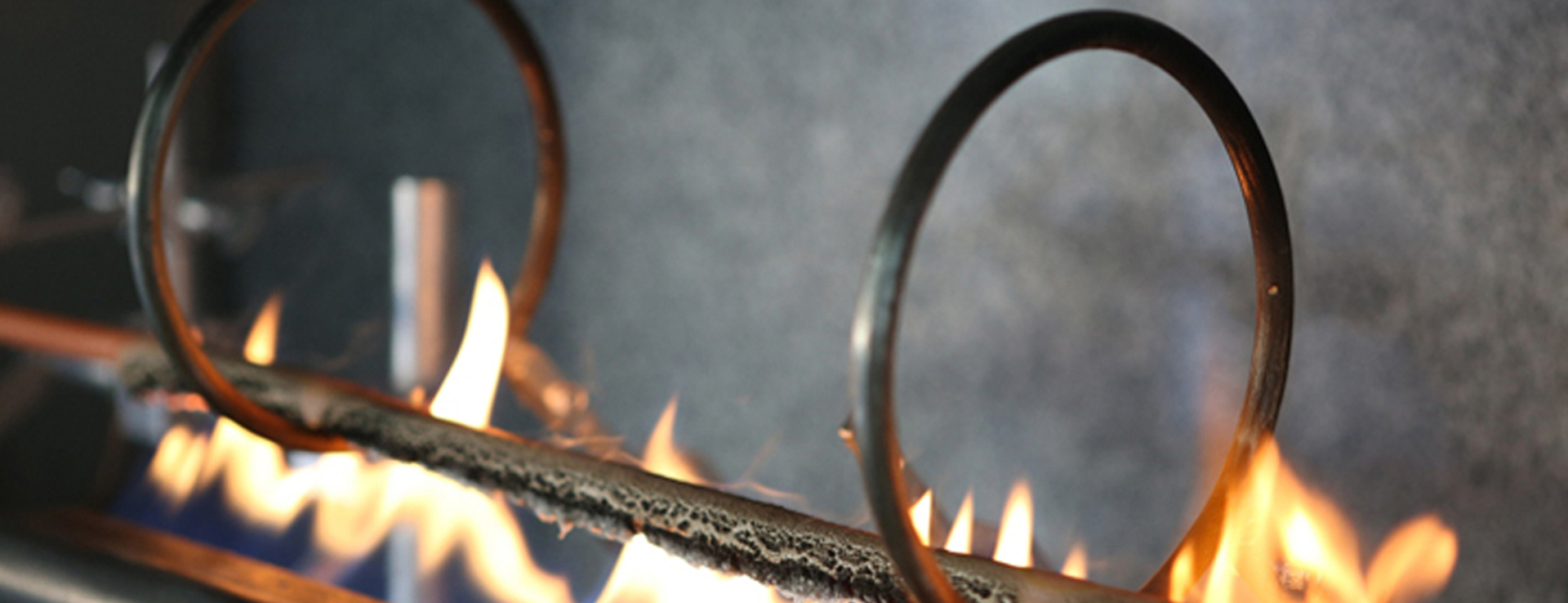

| Fire Tests | BS 8434-2 BS EN 50200 PH30, PH60, PH120 BS 6387 CW2 |
| Emissions and Flame Propagation | BSEN 50267 (IEC 60754) Acid Gas Emission BS EN 50268 (IEC 61034) Smoke Emission BS EN 50265,50266 (IEC 60332) Flame Propagation (In its bare copper form there are no emissions) |
