Submersible Cables

1) HP Vs Current: The full load current for submersible pump motors, 3 phase, 50 cycles, 415 - 425 V
2) Derating Factors: Multiply the current carrying capacity of the cable by factors given below for various ambient temperatures.

Notes:

•   Current ratings are given considering max. conductor operating temperature of 700C
•   The number and diameter of conductor strands are for reference only. Conductor resistance as per IS : 8130 is the governing criteria. The above data is indicative and may be revised without prior intimation.

Standard Coil length is 100 mtrs; longer lengths & 3C x 50 Sq.mm, 3C x 70 Sq.mm, 3C x 95 Sq.mm Sizes are available on request. KEI will not be responsible for any damages arising out of incorrect application of its product.

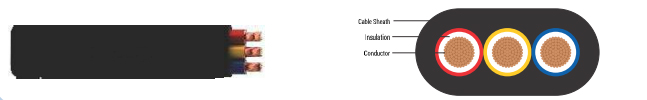

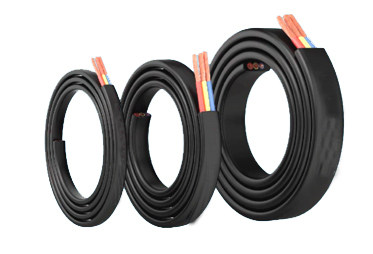

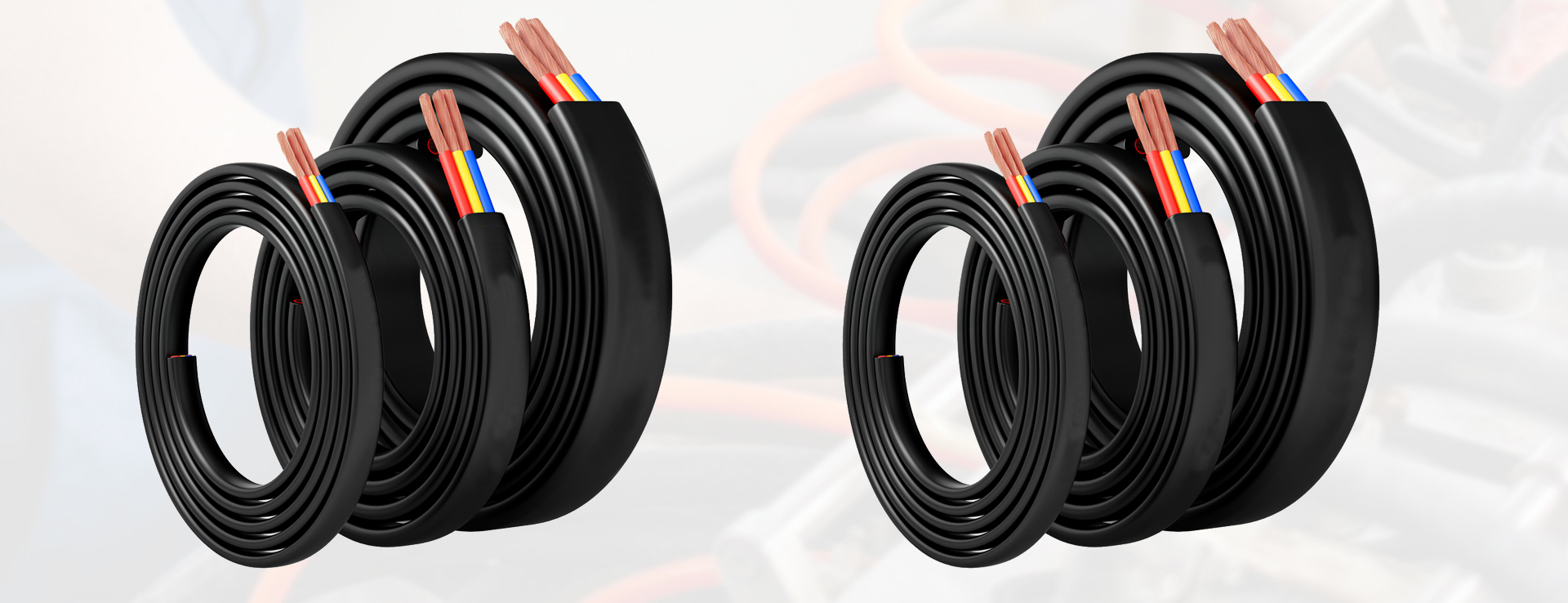

•   The PVC insulated and sheathed 3 core flat cables are mainly used in pump connections. They are also used in many industrial applications.
•   The sheath is specially made out to resist tough and difficult condition of usage, excellent resistant to water, conditionally resistant to water and grease.

•   Approvals: IS 694 marked, FIA/TAC
•   Conductor: Electrolytic grade annealed copper
•   Core Colour: Red,yellow (centre core), blue
•   Sheath Colour: Black
•  Packing: Standard packing of 100 mtr. in coils. Longer length available on request.

•   Kindly complete the part numbers for these cables by adding the suffix (in place of 'y') for the cable type 1 - PVC 70°C, 3 - PVC HR 85°C.
•   Conductor configuration offered for 1.5 Sq. mm - 22 / 0.3 mm, 2.5 Sq. mm - 36 / 0.3 mm (max.), class 2 as per IS 8130.
•   For current ratings & voltage drop refer table no. 6-4. However for size 1.5 & 2.5 Sq. mm. kindly refer table no. 6-3.

XLPE-PVC flat cables are manufactured with rigid manufacturing controls to sustain complete immersion in water and protection against rain water. The conductors are uniformly drawn from high purity electrolytic grade copper on high precision drawing machines with superb flexibility. Compactly bunched to offer uniform resistance across all conductors extruded on dual screw extrusion machine with inline monitoring of cable diameter and high voltage spark testing.

  These cables are mainly used in pump connection. Though they are mainly used to supply power to pumps, they are also used in industrial applications. These cables are specially manufactured keeping in mind the severe, tough and difficult conditions in which they are used.

•   Conductor: Electrolytic grade annealed plain copperto EN 60228, uniformly bunched to form a circular shape
•   Insulation: Cross linked polyethylene XLPE
•   Core Colours: Red, yellow (centre core), blue
•   Sheath: PVC Type ST2 IEC 60502-1 with excellent water resistant properties
•   Sheath Colour: Black

Note: For DC resistance, refer technical information table.
