Instrumentation Cables

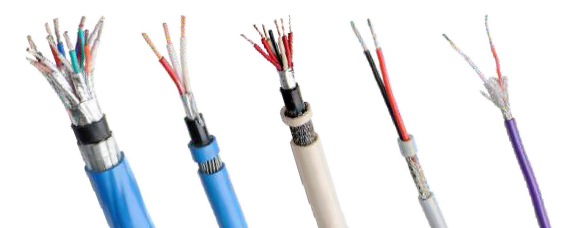

Instrumentation Signal Cables minimize external interference during transmitting signals, deliver clear signals, in harsh environments and general manufacturing operations. These cables are specially designed for use in communication and instrumentation systems. These cables are available in Shielded/Un-Shielded and Armoured /Un-Armoured options.


Technical Specification
  •   Construction: Single/Multi, Pair/Triads
  •   Voltage Grade: Upto 1.1 KV
  •   Conductor: Electrolytic Grade Bare Copper/Tinned Copper
  •   Conductor Size: 0.50, 0.75, 1.0, 1.5, 2.5 Sq. mm upto 24 pair
  •   Conductor Stranding: Solid or Multi Strand
  •   Core Insulation: PVC/HR PVC/PE/XLPE/LSZH Polymer/FR/FRLS PVC, XLPO etc.
  •   Screening Method: Individual and Overall(F type)/Overall Shield (G type)
  •   Screening: Aluminum Foil with Drain Wire/Mesh Braided
  •   Inner/Outer Sheath: PVC/HR PVC/PE/LSZH Polymer/FR PVC/FRLS PVC, PUR, XLPO etc.
  •   Rip Cord: For easy removal of sheath
  •   Armouring: G.I. Round Wire/ Flat Strip Armouring
  •   Standards: As per BS 5308 Part 1 and Part 2, IS 1554, EN 50288-7, IS 7098
FEATURES
  •   Max. Temp. Range upto 125°C
  •   Flexible & Versatile
  •   Flame Retardant & Low smoke availability
  •   High Temperature option also available
  •   Resist to Oil, Corrosion & Moisture
  •   High mechanical strength
  •   Superior low temperature Properties
  •   Screened/Unscreened
  •   High Insulation resistance
  •   Low dielectric Losses
  •   Armoured/Unarmoured
  •   Fire resist option available

ELECTRICAL CHARACTERISTICS FOR INSTRUMENTATION CABLES

Conductor Size Resistance at 20°C Mutual Capacitance (PE) Mutual Capacitance (PVC) L/R Ratio
Overall Screen Individual Screen Pair adjacent core Between any core or screen
(mm2) (01km) (nFlkm) (nFlkm) (nFlkm) (nFlkm) (mHIQ)
0.50 36.8 75 115 250 400 25
0.75 25.0 75 115 250 400 25
1.00 18.4 75 115 250 400 25
1.50 12.3 85 120 250 400 40

RTD TRIAD ABLES
  RTD triad cables are used to carry the RTD signals to the control room orfield mounted instruments.
Technical Specification
  •   Construction: Single / Multi Triads
  •   Voltage Grade: Upto 1.1 KV
  •   Conductor: Electrolytic Grade Bare Copper/Tinned Copper
  •   Conductor Size: 0.50, 0.75, 1.0, 1.5 Sq. mm upto 36 triad
  •   Conductor Stranding: Solid or Multi Strand
  •   Core Insulation: PVC/HR PVC/PE/XLPE/LSZH Polymer/FR/FRLS PVC, XLPO etc.
  •   Screening Method: Individual and Overall/Overall Shield
  •   Screening: Aluminum Foil with Drain Wire/Mesh Braided
  •   Inner/Outer Sheath: PVC/HR PVC/PE/LSZH Polymer/FR PVC/FRLS PVC, PUR, XLPO etc.
  •   Rip Cord: For easy removal of sheath
  •   Armouring: G.I. Round Wire / Flat Strip Armouring
  •   Standards: As per BS 5308 Part 1 and Part 2, IS 1554, EN 50288-7, IS 7098, DIN 43760
FIRE SURVIVAL CABLES
  Fire Survival Cables are used in the installations where vital circuits are required to continue operation under fire conditions. In all disaster, fire smoke head & toxic fumes are the main obstacles to safe evacuation of a building area.
A major contribution towards overcoming these hazards is the use of fire survival cables & halogen free cables.

Technical Specification
  •   Conductor: Electrolytic Grade Bare Copper/Tinned Copper
  •   Fire Resist Heat Barrier: Mica Heat Barrier Tape
  •   Insulation: XLPE/SILICON
  •   Screening: Al-myler/Metal braided
  •   Inner/Outer Sheath: Halogen Free Low Smoke Polymeric compound
  •   Armouring: G.I. Round Wire / G.I. Flat Strip
  •   Standard: IEC 60331, IEC 60332, IEC 60754, BS 6387, EN 50290-2-27, BS 7655, BS 7629-1, IS 7098, IS9968

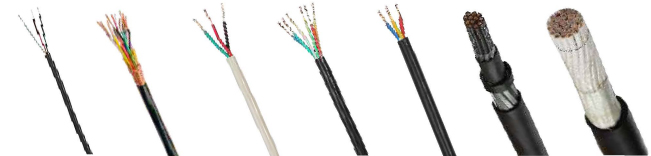

shielded cable
  Control Cable used for transmission of low voltage signal data that have to control equipment whereas, power cable transfer high array signal from the source to the equipments.

TECHNICAL SPECIFICATION
  •   Construction: Single Core / Multi Core
  •   Voltage Grade: Upto 1.1 KV
  •   Conductor: Electrolytic Grade Bare Copper/Tinned Copper
  •   Conductor Size: 0.50, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0, 10.0, 16.0, 25.0, 35.0 upto 300 Sq. mm
  •   Conductor Stranding: Solid or Multi Strand
  •   Core Insulation: PVC/HR PVC/PE/XLPE/LSZH Polymer/FR PVC/FRLS PVC, XLPO etc.
  •   Core Identification: Upto 5 cores by Different Colours
    Above 5 cores by Number Printing
  •   Inner/Outer Sheath: PVC/HR PVC/PE/LSZH Polymer/FR PVC/FRLS PVC, PUR, XLPO etc.
  •   Armouring: G.I. Round Wire / Flat Strip Armouring(As per IS 3975 : 99) / Wire Braiding
  •   Standards: As per IS 694, IS 1554, IS 7098, IEC 60227, IEC 60502-1, IEC 60332
FEATURES
  •   Max. Temperature range up to 125°C
  •   High temperature also available
  •   Flame Retardant & Low smoke availability
  •   Fire Resist option available
  •   Heat resist
  •   Halogen free Low smoke availability
  •   Resist to oil, moisture, chemical, whetheretc.
  •   Armoured / Un-Armoured option available
  •   Screened control Cable option available
  •   Available with different voltage cable up to 1.1 kv
PVC LEAD WIRES
  We provide wide range of Lead wire or Hook up wires with different PVC
TECHNICAL SPECIFICATION
  •   Conductor: Electrolytic Grade Bare Copper, Tinned Copper
  •   Conductor Size: 0.20, 0.5, 1.0, 1.5, 2.5 upto 240 sq. mm
  •   Conductor Stranding: Solid, Multistrand, Flexible
  •   Voltage Rating: Up to 1.1 KV
  •   Insulation: PVC, HR PVC, FR PVC, FRLS PVC, LSZH Polymer, HFFR Polymer
  •   Standards: IS 694, IS 8130, IS 5831: 84

FEATURES
  •   Max. Temp. Up to 90°C
  •   Good Flexibility
  •   Excellent Resist to Oil, Moist, Fluids and Chemicals
  •   Excellent Di-electric Properties
  •   Excellent Flame Retardant, Low smoke
  •   Halogen free
  •   Color as per requirement
  •   Color lining available(Optional)

 Request a Quote
