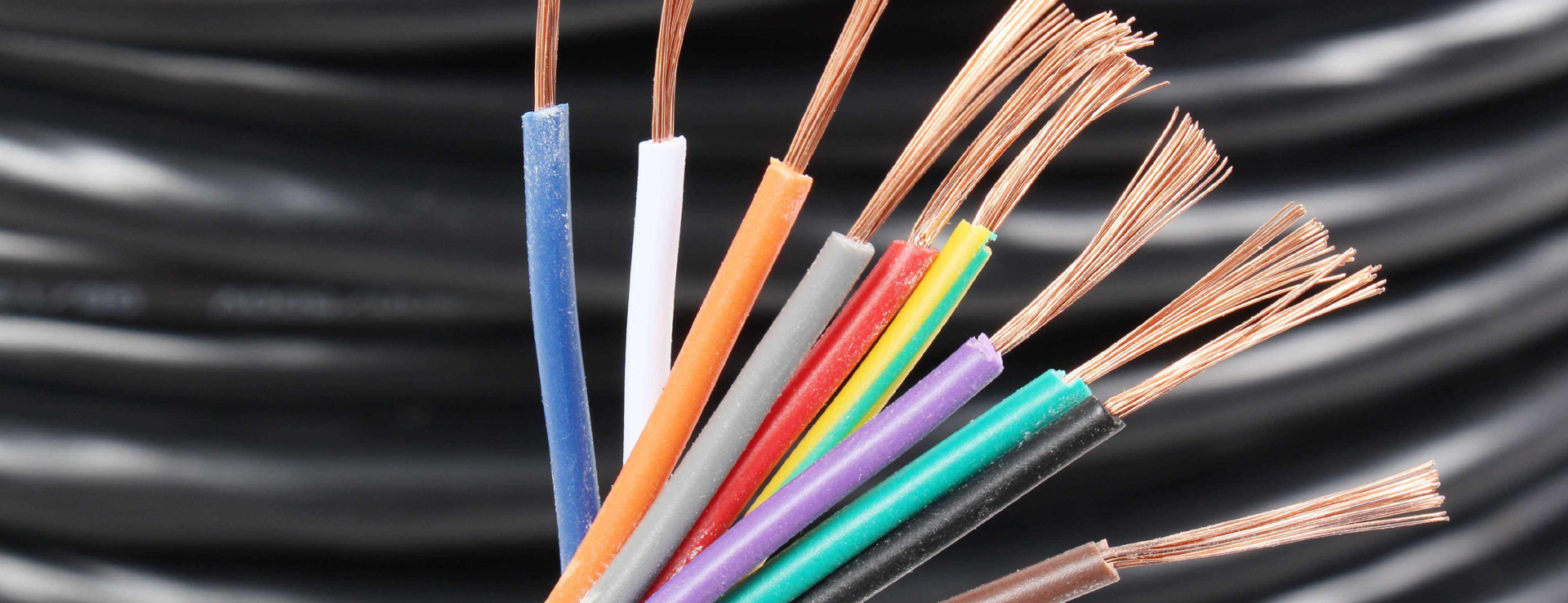

Single Core & Multi Core

Owing to our consistent efforts for quality and providing the best, we have developed exhaustive range of domestic wires and cables suitable to Indian homes and varied conditions. Manufactured with best quality of Conductor (electrolytic grade copper) and finest grade of indigenously developed PVC compound, Wires and Cables give maximum safety at no extra cost.
Construction
  • Conductor :
    Bare annealed copper as per 15 : 8130 / BS : 6360/IEC : 60228.
  • Insulation :
    Primary - Natural PVC with FR Property Secondary-Skin Colour with FR Property coated PVC.
  • Standard :
    15:694/2010.
  • Sizes :
    0.5 sq.mm to 6 sq.mm (House Wire).
    0.5 sq.mm to 400sq.mm (Single Core).
Salient Features
  •   Electrolytic Grade copper having pure and maximum conductivity to ensure maximum safety.
  •   Bunching of copper in uniform lay & diameter, that makes stripping &crimping of wires easier &minimizes losses.
  •   Indigenously developed PVC compound formulated from finest ingredients and produced in-house.
  •   Double insulation, with primary insulation from virgin PVC, coated with ultra thin colour layer.
Single Core Flexible Cables Conforming to IS : 694/2010
1100V Grade Multi Strand Flexible Annealed Bare Copper Conductor, PVC Insulated and Unsheathed Single Core Flexible Cables Conforming to IS :694/2010 with ISI Marking.
Conductor Area
Sq.mm.		 No. & Size of Each
Strand mm.		 Max. DC Resistance at 20°C
Ohm/Km. 		Insulation Thickness Nominal
mm.		 Cable Dia App.
mm.		 Current Carrying Capacity
Amp.
5 16/0.20 39 0.6 2.1 7
0.75 24/0.20 26 0.6 2.3 8
1 32/0.20 19.5 0.6 2.55 13
15 30/0.25 13.3 0.7 2.85 17
25 50/0.25 7.98 0.7 3.55 24
4 56/030 4.95 0.8 3.95 30
6 84/030 3.3 0.8 4.55 38
10 80/0.40 1.91 1.0 6.1 52
16 126/0.40 1.21 1.0 7.1 70
25 196/0.40 0.78 1.20 8.7 88
35 276/0.40 0.554 1.2 9.9 110
50 396/0.40 0.386 1.4 11.8 145
70 556/0.40 0.272 1.4 13.5 215
95 756/0.40 0.206 1.6 15.5 260
120 954/0.40 0.161 1.6 17.1 305
150 1192/0.40 0.129 1.8 19.2 355
185 1472/0.40 0.106 2.0 21.3 415
240 1910/0.40 0.0801 2.2 24.2 500
300 2380/0.40 0.0641 2.4 26.7 585
400 3182/0.40 0.0486 2.6 30.7 640

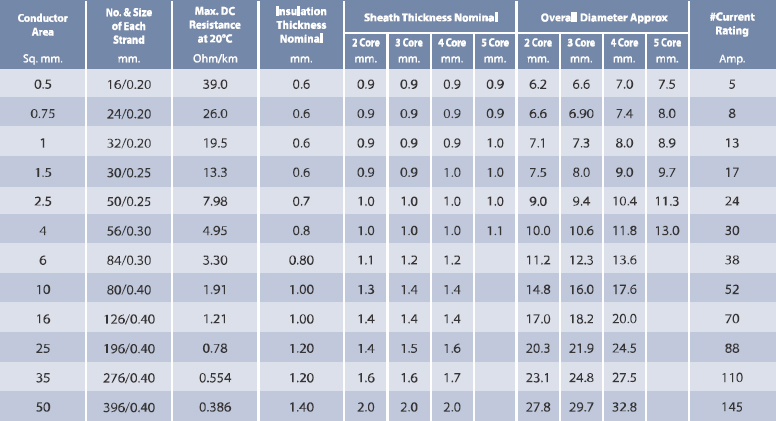

Multi-Core Flexible Cables Conforming to IS : 694/2010
1100V Grade Multi Strand Flexible Annealed Copper Conductor, PVC Insulated, PVC Sheathed Multi-Core Flexible Cables Conforming to IS :694/2010.
