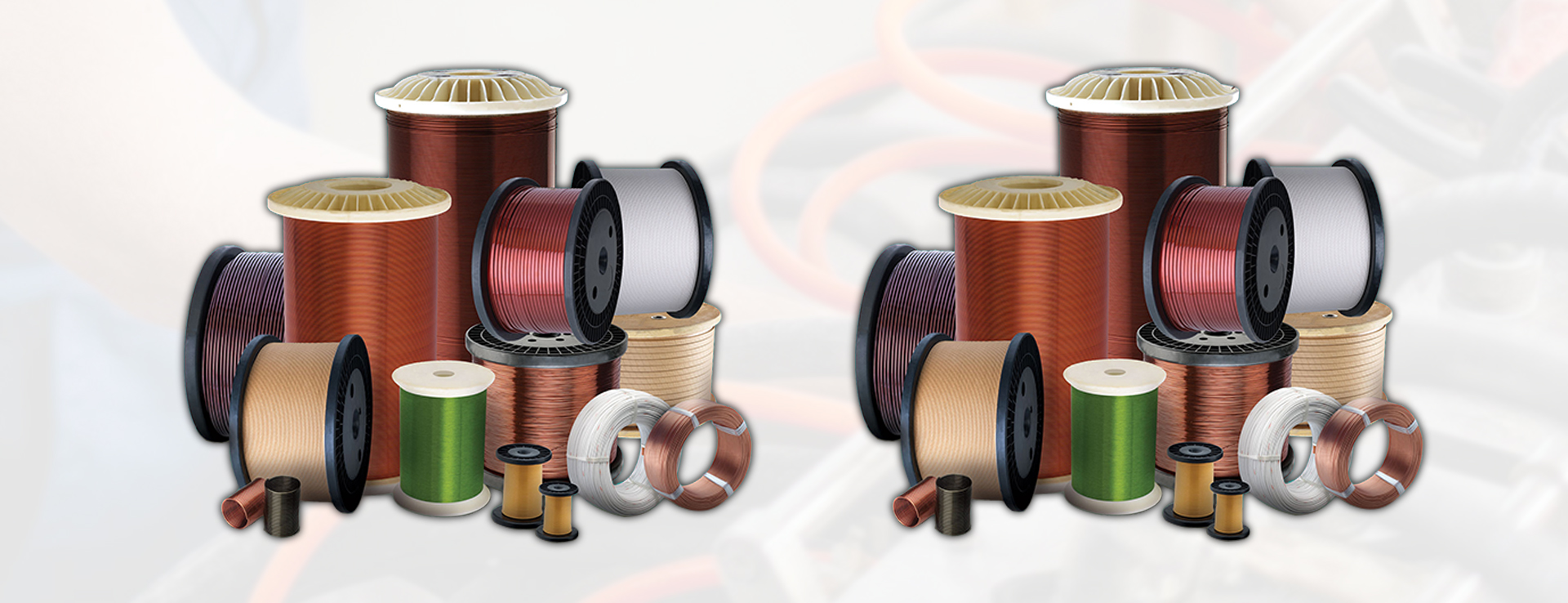

Winding Wires

We proudly presents the winding wire commonly known as "SUBMERSIBLE COPPER WINDING WIRE." The copper conductor is wrapped with thin polyester film & Biaxial Oriented Poly Propylene (BOPP) films. The modern plant with sophisticated wrapping heads & inline continuous heat shrinkage furance is installed to get uniform covering. A complete quality assurance testing by instruments covering all governing standards is available. The test standards followed are IS 8783:1995.

Applications

Used in submersible pump motors of all sizes for domestic and industrial.

Packings

Available in coil form with sustainable length as per size, in polythene bag and packed in inner & outer corrugated boxes.

Testing Facilities For Submersible Winding Wires

The quality assurance having all testing facilities with ultra modern, high precision instruments and rigorous testing plants. Details of test which conforms to IS 8783 (Part 4/sec 3) is as follows.

Salient Features

Saves energy - ETP grade high conductivity annealed copper used
Less current leakage - No air gap between the films
Tear resistant - High mechanical strength - High tensile strength
Each coil tested at 3500 V
Heat shock test at 150°C
Easy winding - Resistance annealed copper and controlled OD
Manufactured by ultra modern automatic plant as per IS 8783 (Part 4/sec 3)

S.No.	Name of the Tests	Units	Testing Instruments Used
1	Size (Diameters'	mm	Digital Micrometers
2	Elongation	Percentage	Tensile tester
3	Conductor Resistance	Ohm/Km	Resistance Meter
4	Volume Resistivit	Ohm-cm	Million mega meter
5	High Voltage Test	Kv	High Voltage tester
6	Thermal Ageing	Change in Elongation & tensile	Ageing Oven & tensile tester
7	Shrinkage Test	Percent	Circulating Hot air oven
8	Water Absorption	mg/cm2	Vacuum Oven & Pump Desecrator
9	Hot Deformation	Percent	Circulating Hot air oven
10	Heat Shock test	No sign of Cracks/scales/separation of layers	Circulating Hot air oven & Mandrels

Nom. Conductor Diameter (mm)	Tolerance +/- mm	Overall Diameter Approx. (mm)	Conductor Resistance at 20° C ohms/km Max	Weight Per KM (Kg)	Elongation Minimum I%)


0.5	0.005	0.82	87.78	2.04	25
0.6	0.006	0.92	60.96	2.86	26
0.7	0.007	1.02	44.78	3.84	28
0.8	0.008	1.12	34.29	4.96	28
0.9	0.009	1.25	27.09	6.36	29
1	0.01	1.42	21.94	7.75	30
1.1	0.011	1.52	18.14	9.28	30
1.2	0.012	1.62	15.24	10.95	31
1.3	0.013	1.72	12.98	12.76	32
1.4	0.014	1.82	11.2	14.71	32
1.5	0.015	1.92	9.75	16.80	32
1.6	0.016	2.02	8.57	19.02	32
1.7	0.017	2.22	7.59	21.72	32
1.8	0.018	2.32	6.77	24.25	32
1.9	0.019	2.42	6.08	26.91	32
2	0.02	2.52	549	29.71	33
2.1	0.021	2.62	4.98	32.66	33
2.2	0.022	2.72	4.53	35.74	33
2.3	0.023	2.82	4.15	38.97	33
2.4	0.024	2.92	3.81	42.32	33
